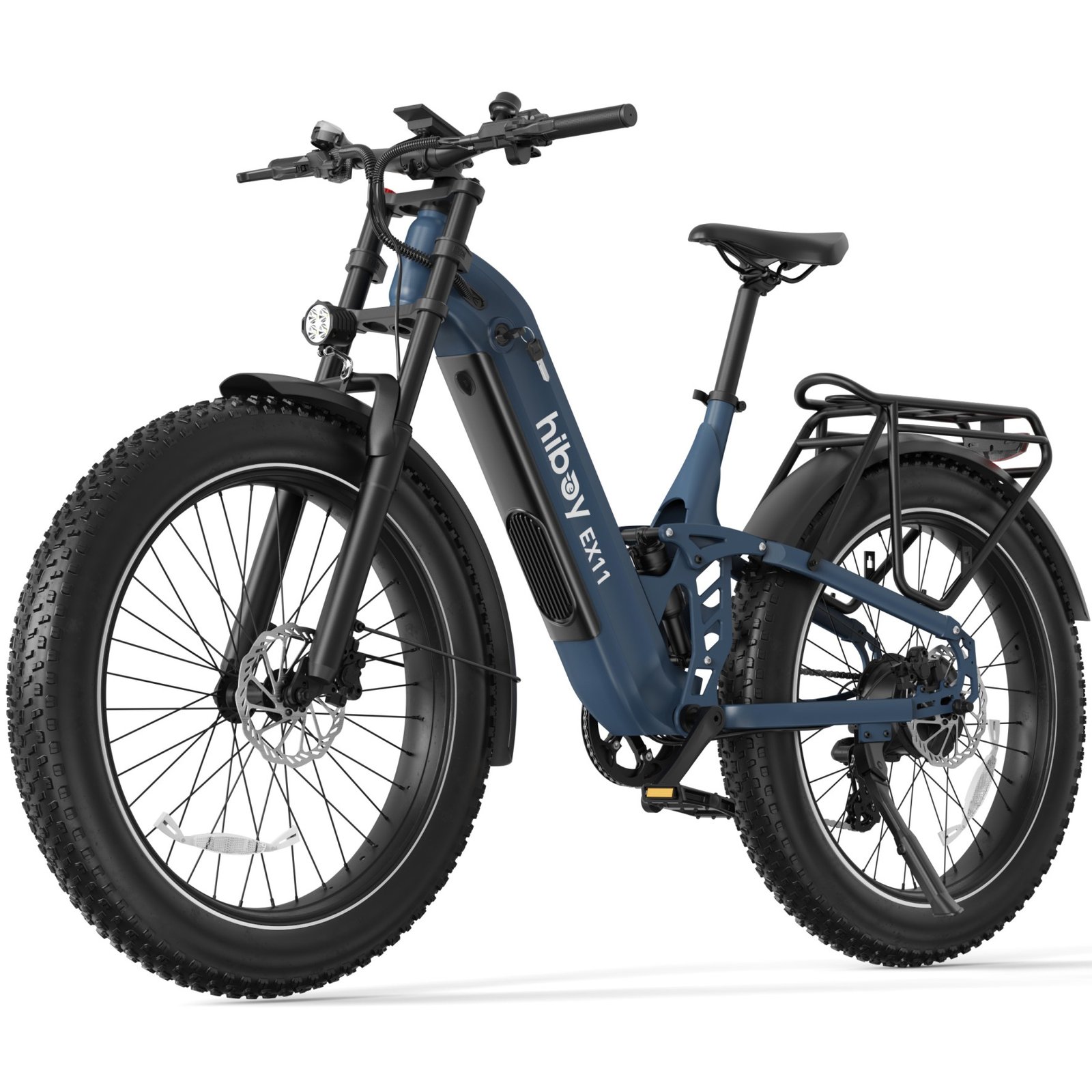

26X4″ Electric Bike EX11

EX11 is a full-suspension e-bike built for long-distance outdoor rides.

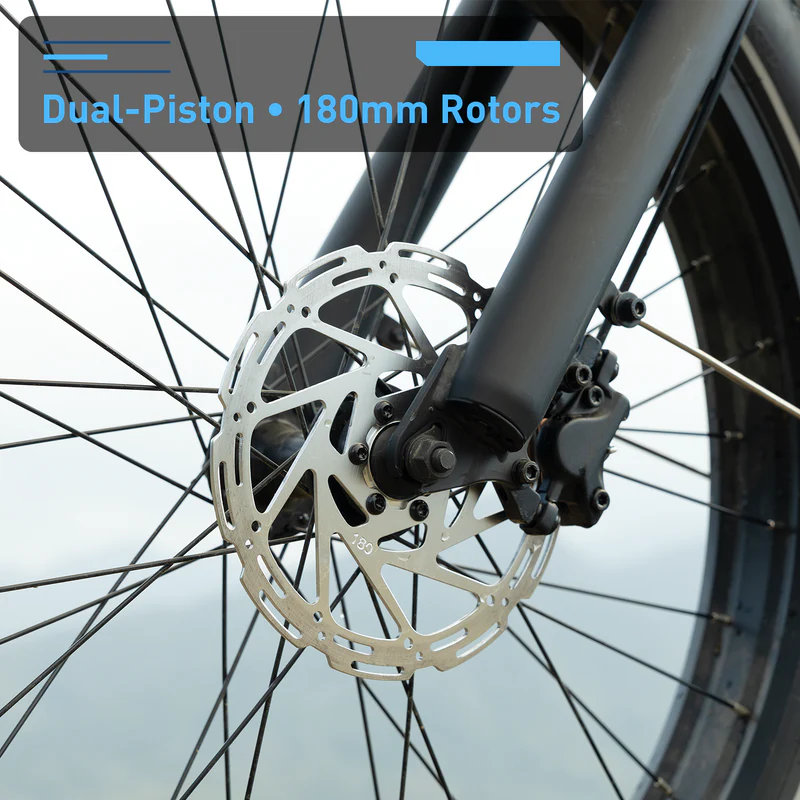

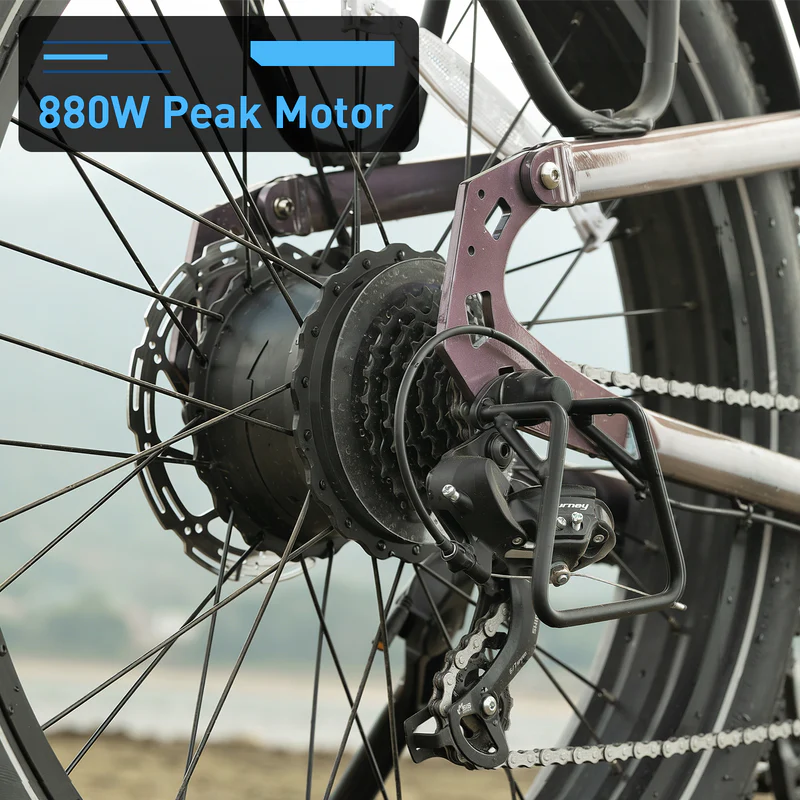

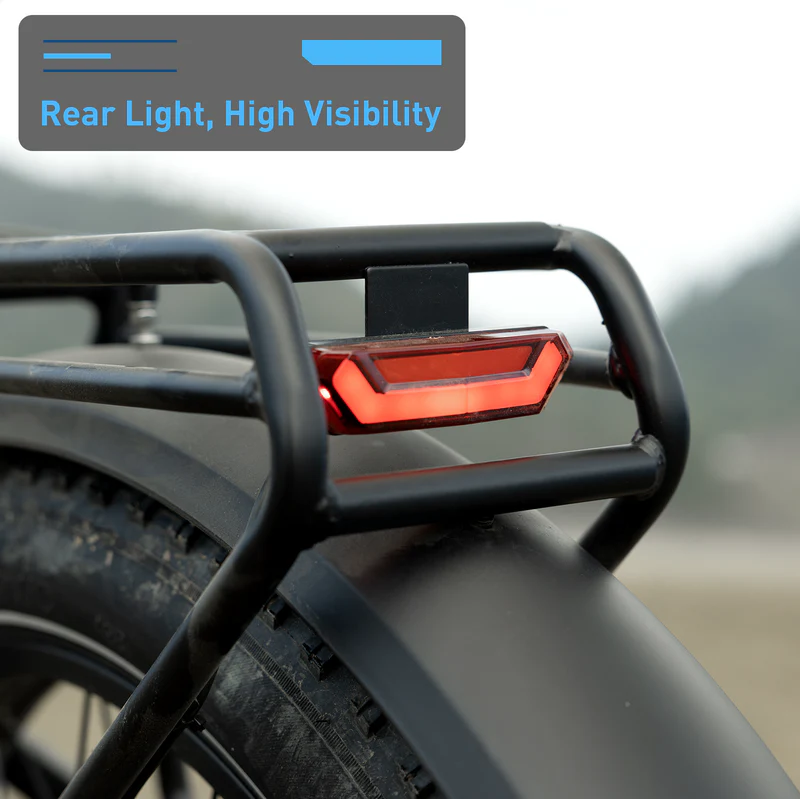

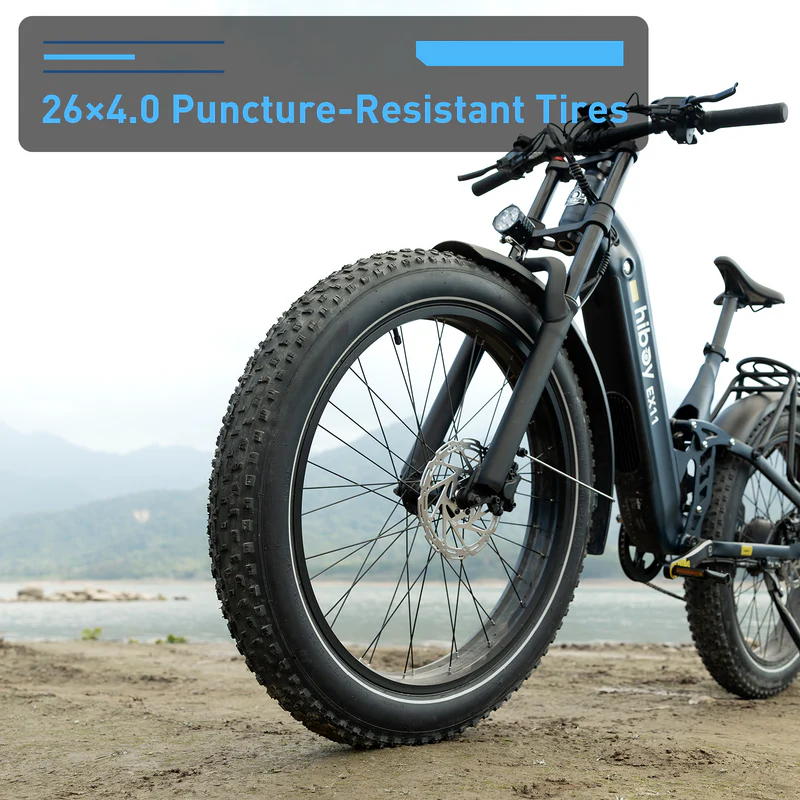

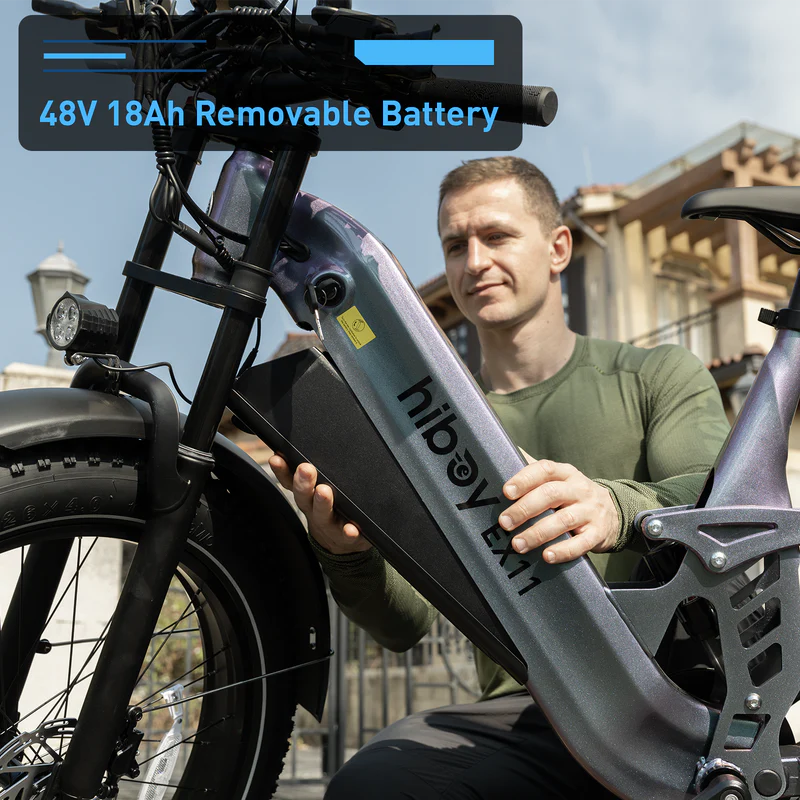

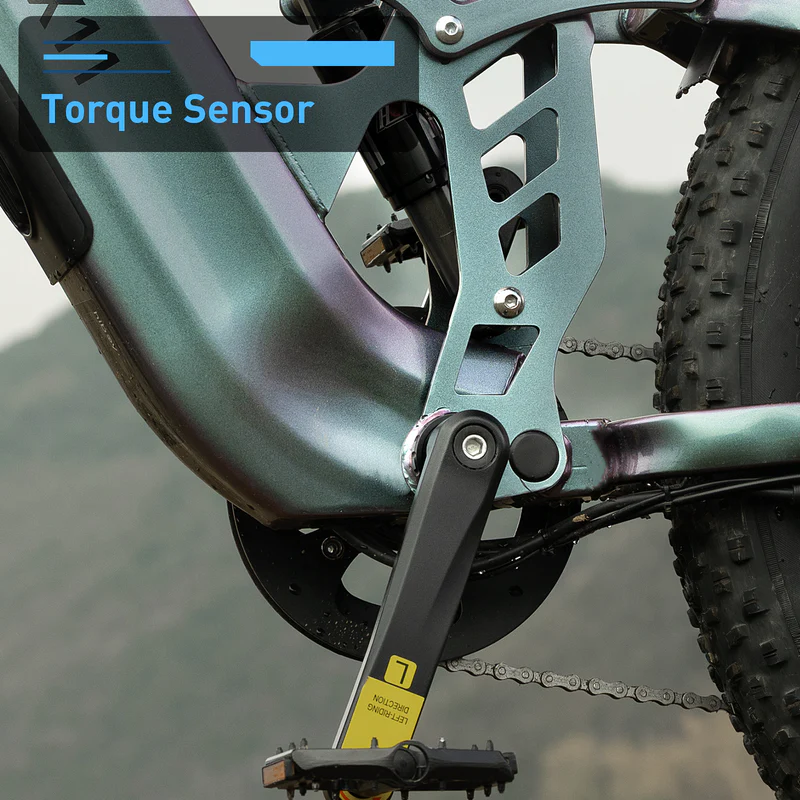

It leads with comfort and stability: a 26” 4-bar full-suspension frame paired with an 80mm dual-crown suspension fork (with lockout) smooths out potholes, gravel, and trails for a calmer, less fatiguing ride—then locks out for better efficiency on flatter roads. For range, EX11 runs on a removable 48V 18Ah battery delivering up to 161 km, so camping, fishing, and hunting trips are covered with less battery anxiety. Power comes from a 48V 750W motor (880W peak) with 90N·m torque and a torque sensor, giving you punchy starts, easier climbs, and a more natural, controlled pedal-assist feel. For confidence and safety, EX11 features dual-piston hydraulic disc brakes + 180mm thick rotors, plus 26×4.0 puncture-resistant fat tires with reflective sidewalls for grip and visibility.

Product Details



Battery capacity 48 V 18 Ah
Folding size N/A
Unfolding size 195.3*69*110 cm
Wheel size 26X4″ Pneumatic Tire
Speed modes Shifter: Shimano 7 Speed
Brake system Front & Rear Hydraulic Disc Brake
Charging time 9-10 hours
Max Slope 20%
Product weight 44.9 kg

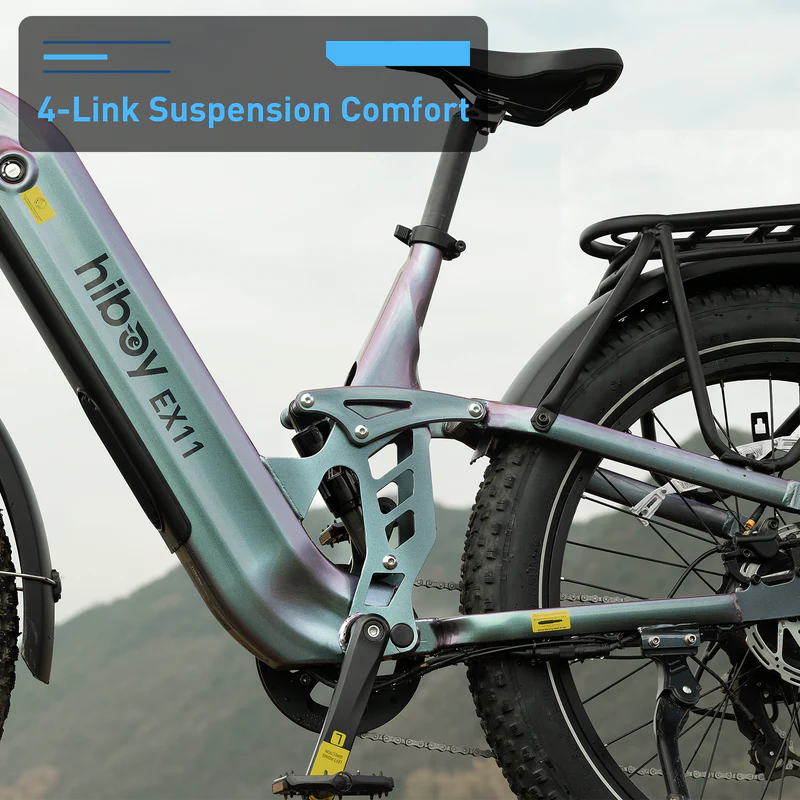

Suspension Mid-Mount Suspension + Four-link Suspension
Pure Electric Distance 64 km
Pedal Assisted Distance 128 km
Pure Electric Speed 32 km/h
Pedal Assisted Speed 45 km/h
Motor 750 W

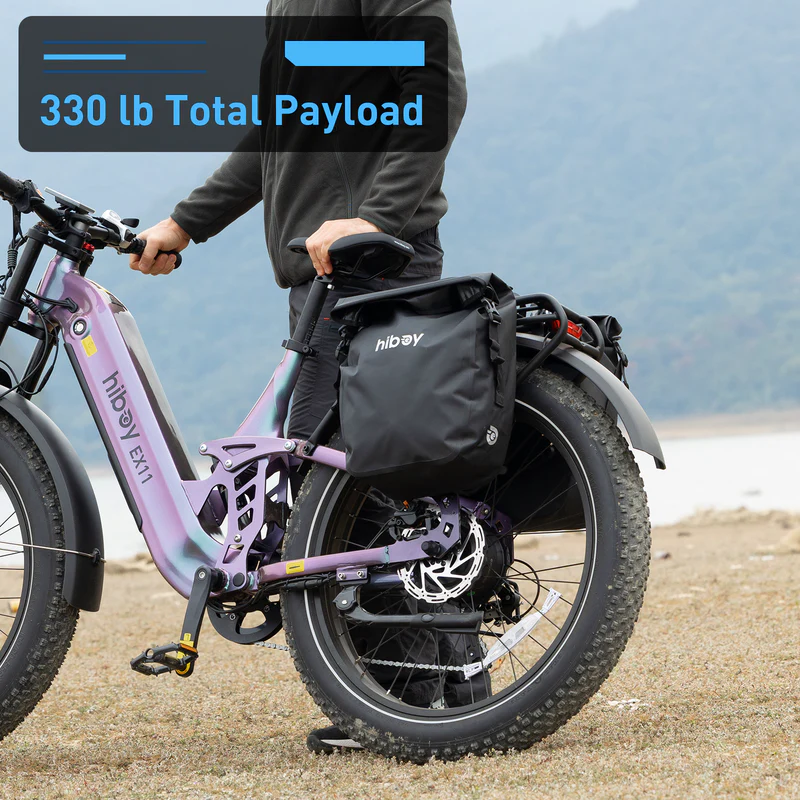

Max load 150 kg
